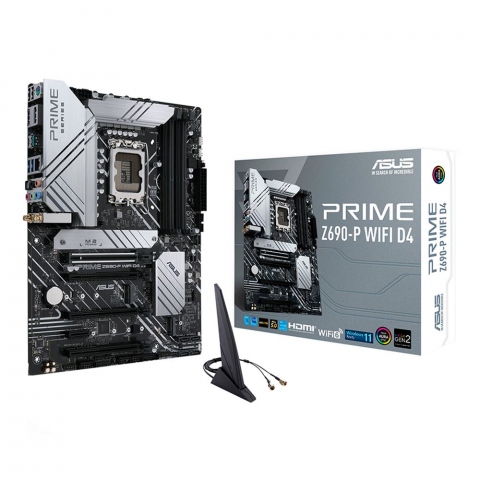

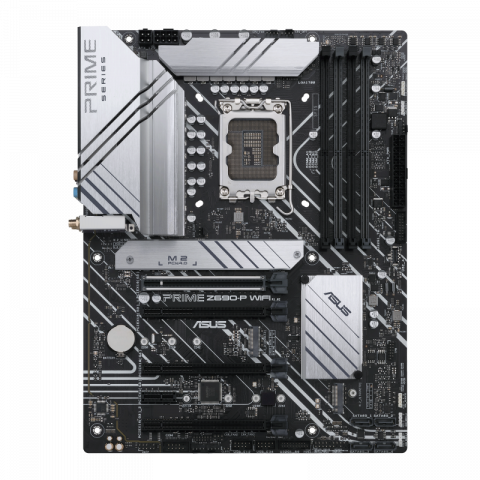

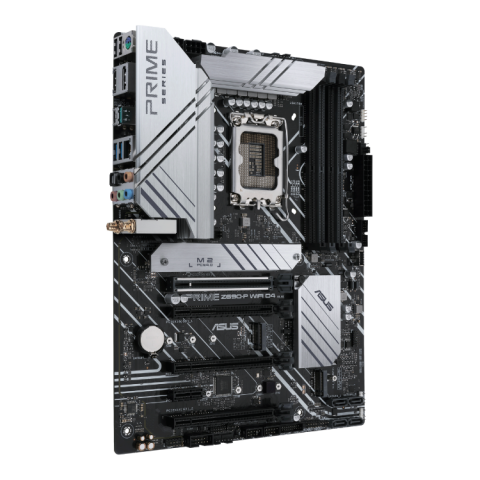

TARJETA MADRE ASUS Z690, INTEL S1700, 12VA GEN, DDR5, PCIE 5.0

1. ZóCALO INTEL® LGA 1700: LISTO PARA PROCESADORES INTEL® CORE ? DE 12.ª GENERACIóN, COMPATIBLE CON PCIE 5.0 Y DDR5 Y LISTO PARA WINDOWS 11 LISTO PARA USAR 2. SOLUCIóN DE ENERGíA MEJORADA: 14 + 1 DRMOS, CONECTOR PROCOOL, ESTRANGULADORES DE ALEACIóN Y CAPACITORES DURADEROS PARA UNA ENTREGA DE ENERGíA ESTABLE 3. REFRIGERACIóN COMPLETA: DISIPADOR DE CALOR VRM GRANDE, DISIPADOR DE CALOR M.2 FLEXIBLE, DISIPADOR DE CALOR PCH, CABEZALES DE VENTILADOR HíBRIDOS Y FAN XPERT 4 4. RENDIMIENTO DE MEMORIA MEJORADO: EL DISEñO DE SEGUIMIENTO PATENTADO DE ASUS OPTIMEM II PERMITE QUE LOS KITS DE MEMORIA FUNCIONEN A FRECUENCIAS MáS ALTAS CON VOLTAJES MáS BAJOS PARA MAXIMIZAR EL RENDIMIENTO DEL SISTEMA. 5. CONECTIVIDAD ULTRARRáPIDA: PCIE 5.0, DDR5, WIFI 6, REALTEK 2.5GB ETHERNET, USB 3.2 GEN 2X2 TYPE-C®, USB 3.2 GEN 1 TYPE-C® DEL PANEL FRONTAL, SOPORTE DE ENCABEZADO THUNDERBOLT ? 4 6. PC COMPATIBLE CON BRICOLAJE: RANURA DE SEGURIDAD PCIE 5.0, CóDIGO Q-LEDCPU INTEL® SOCKET LGA1700 FOR 12TH GEN INTEL® CORE?, PENTIUM® GOLD AND CELERON® PROCESSORS* SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® Z690 CHIPSET MEMORY 4 X DIMM, MAX. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II *ACTUAL MEMORY DATE RATE DEPENDS ON THE CPU TYPES AND DRAM MODULES, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR THE MEMORY QVL (QUALIFIED VENDORS LISTS). EXPANSION SLOTS INTEL® 12TH GEN PROCESSORS* 1 X PCIE 5.0/4.0/3.0 X16 SLOT INTEL® Z690 CHIPSET** 1 X PCIE 4.0/3.0 X16 SLOT (SUPPORTS X4 MODE) 2 X PCIE 3.0 X16 SLOTS (SUPPORT X4 MODE) 1 X PCIE 3.0 X1 SLOT * PLEASE CHECK PCIE BIFURCATION TABLE IN SUPPORT SITE. ** SUPPORTS INTEL® OPTANE MEMORY H SERIES ON PCH-ATTACHED PCIE SLOT STORAGE TOTAL SUPPORTS 3 X M.2 SLOTS AND 4 X SATA 6GB/S PORTS* INTEL® 12TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2242/2260/2280/22110 - INTEL® 12TH GEN PROCESSORS SUPPORT PCIE 4.0 X4 MODE. INTEL® Z690 CHIPSET** M.2_2 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE) M.2_3 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 AND SATA MODES) 4 X SATA 6GB/S PORTS * INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS NVME RAID 0/1/5, SATA RAID 0/1/5/10. ** INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS INTEL® OPTANE MEMORY H SERIES ON PCH ATTACHED M.2 SLOTS. ETHERNET 1 X REALTEK 2.5GB ETHERNET WIRELESS AND BLUETOOTH WI-FI 6 2X2 WI-FI 6 (802.11 A/B/G/N/AC/AX) SUPPORTS 2.4/5GHZ FREQUENCY BAND BLUETOOTH V5.2 USB REAR USB (TOTAL 6 PORTS) 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 1 X USB 3.2 GEN 2 PORT (1 X TYPE-A) 2 X USB 3.2 GEN 1 PORTS (2 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) FRONT USB (TOTAL 9 PORTS) 1 X USB 3.2 GEN 1 CONNECTOR (SUPPORTS USB TYPE-C®) 2 X USB 3.2 GEN 1 HEADERS SUPPORT ADDITIONAL 4 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS* * USB_E1 PORT, USB_E2 PORT, USB_E3 PORT AND USB_E4 PORT SHARE THE BANDWIDTH. AUDIO REALTEK 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - SUPPORTS UP TO 24-BIT/192 KHZ PLAYBACK AUDIO FEATURES - AUDIO SHIELDING - REAR OPTICAL S/PDIF OUT PORT - PREMIUM AUDIO CAPACITORS - DEDICATED AUDIO PCB LAYERS BACK PANEL I/O PORTS 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 1 X USB 3.2 GEN 2 PORT (1 X TYPE-A) 2 X USB 3.2 GEN 1 PORTS (2 X TYPE-A) 2 X USB 2.0 PORTS (2 X TYPE-A) 1 X DISPLAYPORT 1 X HDMI® PORT 1 X WI-FI MODULE 1 X REALTEK 2.5GB ETHERNET PORT 5 X AUDIO JACKS 1 X OPTICAL S/PDIF OUT PORT 1 X PS/2 KEYBOARD/MOUSE COMBO PORT INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 1 X 4-PIN CPU OPT FAN HEADER 1 X 4-PIN AIO PUMP HEADER 3 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 1 X 8-PIN +12V POWER CONNECTOR 1 X 4-PIN +12V POWER CONNECTOR STORAGE RELATED 3 X M.2 SLOTS (KEY M) 4 X SATA 6GB/S PORTS USB 1 X USB 3.2 GEN 1 CONNECTOR (SUPPORTS USB TYPE-C®) 2 X USB 3.2 GEN 1 HEADERS SUPPORT ADDITIONAL 4 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS MISCELLANEOUS 3 X ADDRESSABLE GEN 2 HEADERS 2 X AURA RGB HEADERS 1 X CLEAR CMOS HEADER 1 X COM PORT HEADER 1 X FRONT PANEL AUDIO HEADER (AAFP) 1 X SPI TPM HEADER (14-1PIN) 1 X 20-5PIN SYSTEM PANEL HEADER 1 X THUNDERBOLT? HEADER SPECIAL FEATURES ASUS 5X PROTECTION III - DIGI+ VRM (- DIGITAL POWER DESIGN WITH DRMOS) - LANGUARD - OVERVOLTAGE PROTECTION - SAFESLOT - STAINLESS-STEEL BACK I/O ASUS Q-DESIGN - Q-DIMM - Q-SLOT ASUS THERMAL SOLUTION - FLEXIBLE M.2 HEATSINK - VRM HEATSINK DESIGN ASUS EZ DIY - PROCOOL AURA SYNC - AURA RGB HEADERS - ADDRESSABLE GEN 2 RGB HEADERS SOFTWARE FEATURES ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AURA SYNC - FAN XPERT 4 AI SUITE 3 - PERFORMANCE AND POWER SAVING UTILITY TURBOV EVO EPU DIGI+ VRM ASUS CPU-Z MYASUS NORTON ANTI-VIRUS SOFTWARE (FREE TRIAL VERSION) WINRAR UEFI BIOS ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE BIOS 192 (128+64) MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 2 X SATA 6GB/S CABLES MISCELLANEOUS 1 X ASUS WI-FI MOVING ANTENNAS 1 X I/O SHIELD 1 X M.2 RUBBER PACKAGE 2 X M.2 SSD SCREW PACKAGES INSTALLATION MEDIA 1 X SUPPORT DVD DOCUMENTATION 1 X USER GUIDE OPERATING SYSTEM WINDOWS® 11 64-BIT , WINDOWS® 10 64-BIT FORM FACTOR ATX FORM FACTOR 12 INCH X 9.2 INCH ( 30.5 CM X 23.4 CM )
