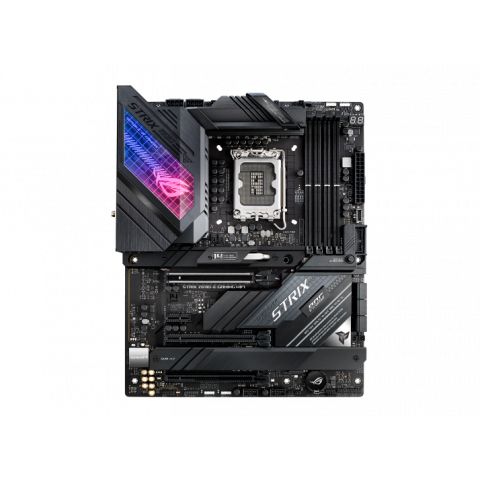

ROG STRIX Z690-E GAMING WIFI

CPU INTEL® SOCKET LGA1700 FOR 12TH GEN INTEL® CORE?, PENTIUM® GOLD AND CELERON® PROCESSORS* SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0** * REFER TO WWW.ASUS.COM FOR CPU SUPPORT LIST. ** INTEL® TURBO BOOST MAX TECHNOLOGY 3.0 SUPPORT DEPENDS ON THE CPU TYPES. CHIPSET INTEL® Z690 CHIPSET MEMORY 4 X DIMM, MAX. 128GB, DDR5 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 NON-ECC, UN-BUFFERED MEMORY* DUAL CHANNEL MEMORY ARCHITECTURE SUPPORTS INTEL® EXTREME MEMORY PROFILE (XMP) OPTIMEM II * SUPPORTED MEMORY TYPES, DATA RATE(SPEED), AND NUMBER OF DRAM MODULE VARY DEPENDING ON THE CPU AND MEMORY CONFIGURATION, FOR MORE INFORMATION REFER TO WWW.ASUS.COM FOR MEMORY SUPPORT LIST.. GRAPHICS 1 X DISPLAYPORT** 1 X HDMI®*** * GRAPHICS SPECIFICATIONS MAY VARY BETWEEN CPU TYPES. PLEASE REFER TO WWW.INTEL.COM FOR ANY UPDATES. ** SUPPORT 8K@60HZ AS SPECIFIED IN DISPLAYPORT 1.4. *** SUPPORT 4K@60HZ AS SPECIFIED IN HDMI 2.1. EXPANSION SLOTS INTEL® 12TH GEN PROCESSORS* 1 X PCIE 5.0 X16 SLOT** INTEL® Z690 CHIPSET*** 1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE OR X4/X4 MODE FOR ROG HYPER M.2 CARD) 1 X PCIE 3.0 X16 SLOT (SUPPORTS X4 MODE) 1 X PCIE 3.0 X1 SLOT * PLEASE CHECK PCIE BIFURCATION TABLE IN CHAPTER 1 OF USER GUIDE. ** WHEN M.2_1 IS OCCUPIED WITH SSD DEVICE, PCIEX16(G5) WILL RUN X8 ONLY. *** SUPPORTS INTEL® OPTANE MEMORY H SERIES ON PCH-ATTACHED PCIE SLOT. STORAGE TOTAL SUPPORTS 5 X M.2 SLOTS AND 6 X SATA 6GB/S PORTS* INTEL®12TH GEN PROCESSORS M.2_1 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 5.0 X4 MODE) - INTEL® 12TH GEN PROCESSORS SUPPORT PCIE 5.0 X4 MODE. M.2_2 SLOT (KEY M), TYPE 2242/2260/2280/22110 (SUPPORTS PCIE 4.0 X4 MODE) - INTEL® 12TH GEN PROCESSORS SUPPORT PCIE 4.0 X4 MODE. HYPER M.2_1 SLOT (KEY M) VIA HYPER M.2 CARD, TYPE 2242/2260/2280/22110*** - INTEL® 12TH GEN PROCESSORS SUPPORT PCIE 4.0 X4 MODE INTEL® Z690 CHIPSET** M.2_3 SLOT (KEY M), TYPE 2242/2260/2280 (SUPPORTS PCIE 4.0 X4 MODE AND SATA MODES) HYPER M.2_1 SLOT (KEY M) VIA HYPER M.2 CARD, TYPE 2242/2260/2280/22110 (SUPPPORTS PCIE 4.0 X4 MODE)**** HYPER M.2_2 SLOT (KEY M) VIA HYPER M.2 CARD, TYPE 2242/2260/2280/22110 (SUPPPORTS PCIE 4.0 X4 MODE)**** 6 X SATA 6GB/S PORTS***** * INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS NVME RAID 0/1/5, SATA RAID 0/1/5/10. ** INTEL® RAPID STORAGE TECHNOLOGY SUPPORTS INTEL® OPTANE MEMORY H SERIES ON PCH ATTACHED M.2 SLOTS. *** WHEN ROG HYPER M.2 CARD IS INSTALLED ON PCIEX16(G5), ONLY HYPER M.2_1 SLOT CAN SUPPORT PCIE 4.0 X4 MODE. WHEN ROG HYPER M.2 CARD IS INSTALLED ON PCIEX16(G3), ONLY HYPER M.2_1 SLOT CAN SUPPORT PCIE 3.0 X4 MODE. WHEN ROG HYPER M.2 CARD IS INSTALLED ON PCIEX16(G4), HYPER M.2_1 AND HYPER M.2_2 SLOTS CAN SUPPORT PCIE 4.0 X4 MODE. **** WHEN ROG HYPER M.2 CARD IS INSTALLED ON PCIEX16(G5) OR PCIEX16(G3), HYPER M.2_2 SLOT WILL BE DISABLED. WHEN ROG HYPER M.2 CARD IS INSTALLED ON PCIEX16(G4), HYPER M.2_1 AND HYPER M.2_2 SLOTS CAN SUPPORT PCIE 4.0 X4 MODE. ***** RAID CONFIGURATION AND BOOT DRIVES ARE NOT SUPPORTED ON THE SATA6G_E1-2 PORTS. ETHERNET 1 X INTEL® I225-V 2.5GB ETHERNET ASUS LANGUARD WIRELESS AND BLUETOOTH WI-FI 6E 2X2 WI-FI 6E (802.11 A/B/G/N/AC/AX) SUPPORTS 2.4/5/6GHZ FREQUENCY BAND* BLUETOOTH V5.2 HARDWARE READY** * WIFI 6E 6GHZ REGULATORY MAY VARY BETWEEN COUNTRIES, AND FUNCTION WILL BE READY IN WINDOWS 11 OR LATER. ** BLUETOOTH V5.2 FUNCTION WILL BE READY IN IN WINDOWS 11 OR LATER. USB REAR USB (TOTAL 12 PORTS) 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 3 X USB 3.2 GEN 2 PORTS (2 X TYPE-A + 1 X USB TYPE-C®) 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A) 4 X USB 2.0 PORTS (4 X TYPE-A) FRONT USB (TOTAL 7 PORTS) 1 X USB 3.2 GEN 2X2 CONNECTOR (SUPPORTS USB TYPE-C®) 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS AUDIO ROG SUPREMEFX 7.1 SURROUND SOUND HIGH DEFINITION AUDIO CODEC ALC4080 - IMPEDANCE SENSE FOR FRONT AND REAR HEADPHONE OUTPUTS - SUPPORTS: JACK-DETECTION, MULTI-STREAMING, FRONT PANEL JACK-RETASKING - HIGH QUALITY 120 DB SNR STEREO PLAYBACK OUTPUT AND 113 DB SNR RECORDING INPUT - SUPPORTS UP TO 32-BIT/384 KHZ PLAYBACK AUDIO FEATURES - SUPREMEFX SHIELDING TECHNOLOGY - ALC4080 + SAVITECH SV3H712 AMP - GOLD-PLATED AUDIO JACKS - REAR OPTICAL S/PDIF OUT PORT - PREMIUM AUDIO CAPACITORS - AUDIO COVER BACK PANEL I/O PORTS 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®) 3 X USB 3.2 GEN 2 PORTS (2 X TYPE-A, 1 X USB TYPE-C® ) 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A) 4 X USB 2.0 PORTS (2 X TYPE-A) 1 X HDMI? PORT 1 X DISPLAYPORT 1 X WI-FI MODULE 1 X INTEL® I225-V 2.5GB ETHERNET 5 X GOLD-PLATED AUDIO JACKS 1 X OPTICAL S/PDIF OUT PORT 1 X BIOS FLASHBACK? BUTTON 1 X CLEAR CMOS BUTTON INTERNAL I/O CONNECTORS FAN AND COOLING RELATED 1 X 4-PIN CPU FAN HEADER 1 X 4-PIN CPU OPT FAN HEADER 1 X 4-PIN AIO PUMP HEADER 5 X 4-PIN CHASSIS FAN HEADERS POWER RELATED 1 X 24-PIN MAIN POWER CONNECTOR 2 X 8-PIN +12V POWER CONNECTOR STORAGE RELATED 3 X M.2 SLOTS (KEY M) 6 X SATA 6GB/S PORTS USB 1 X USB 3.2 GEN 2X2 CONNECTOR (SUPPORTS USB TYPE-C®) 1 X USB 3.2 GEN 1 HEADER SUPPORTS ADDITIONAL 2 USB 3.2 GEN 1 PORTS 2 X USB 2.0 HEADERS SUPPORT ADDITIONAL 4 USB 2.0 PORTS MISCELLANEOUS 3 X ADDRESSABLE GEN 2 HEADERS 1 X AURA RGB HEADER 1 X CPU OVER VOLTAGE JUMPER 1 X FRONT PANEL AUDIO HEADER (AAFP) 1 X SPI TPM HEADER (14-1PIN) 1 X 20-3 PIN SYSTEM PANEL HEADER WITH CHASSIS INTRUDE FUNCTION 1 X THERMAL SENSOR HEADER 1 X THUNDERBOLT HEADER SPECIAL FEATURES EXTREME ENGINE DIGI+ - 5K BLACK METALLIC CAPACITORS ASUS Q-DESIGN - M.2 Q-LATCH - PCIE SLOT Q-RELEASE - Q-DIMM - Q-LED (CPU [RED], DRAM [YELLOW], VGA [WHITE], BOOT DEVICE [YELLOW GREEN]) - Q-SLOT ASUS THERMAL SOLUTION - M.2 HEATSINK BACKPLATE - M.2 HEATSINK ASUS EZ DIY - BIOS FLASHBACK? BUTTON - BIOS FLASHBACK? LED - CLEAR CMOS BUTTON - CPU SOCKET LEVER PROTECTOR - PROCOOL II - PRE-MOUNTED I/O SHIELD - SAFESLOT - SAFEDIMM AURA SYNC - AURA RGB HEADER - ADDRESSABLE GEN 2 RGB HEADERS ASUS HYDRANODE - 1 X CHASSIS FAN SUPPORT* (CHA_FAN1P) * VISIT ASUS WEBSITE FOR THE LATEST COMPATIBILITY LIST. TPM HEADER SOFTWARE FEATURES ROG EXCLUSIVE SOFTWARE - ROG CPU-Z - GAMEFIRST VI - SONIC STUDIO III + SONIC STUDIO VIRTUAL MIXER + SONIC SUITE COMPANION - SONIC RADAR III - DTS® SOUND UNBOUND - ANTI-VIRUS SOFTWARE ASUS EXCLUSIVE SOFTWARE ARMOURY CRATE - AIDA64 EXTREME (60 DAYS FREE TRIAL) - AURA CREATOR - AURA SYNC - FAN XPERT 4 - TWO-WAY AI NOISE CANCELATION AI SUITE 3 - 5-WAY OPTIMIZATION WITH AI OVERCLOCKING TPU EPU DIGI+ VRM TURBO APP MYASUS WINRAR UEFI BIOS AI OVERCLOCKING GUIDE ASUS EZ DIY - ASUS CRASHFREE BIOS 3 - ASUS EZ FLASH 3 - ASUS UEFI BIOS EZ MODE FLEXKEY MEMTEST86 BIOS 256 MB FLASH ROM, UEFI AMI BIOS MANAGEABILITY WOL BY PME, PXE ACCESSORIES CABLES 4 X SATA 6GB/S CABLES ROG HYPER M.2 CARD 1 X ROG HYPER M.2 CARD MISCELLANEOUS 1 X ASUS 2X2 DUAL-BAND WI-FI MOVING ANTENNAS 1 X M.2 Q-LATCH PACKAGE 1 X M.2 Q-LATCH PACKAGE FOR M.2 BACKPLATE 1 X M.2 RUBBER PACKAGES 2 X M.2 SCREW PACKAGES 1 X ROG GRAPHICS CARD HOLDER 1 X ROG KEY CHAIN 1 X CABLE TIE 1 X ROG STRIX STICKERS 1 X ROG STRIX THANK YOU CARD INSTALLATION MEDIA 1 X SUPPORT DVD DOCUMENTATION 1 X USER MANUAL OPERATING SYSTEM WINDOWS® 10 64-BIT, WINDOWS® 11 64-BIT FORM FACTOR ATX FORM FACTOR 12 INCH X 9.6 INCH ( 30.5 CM X 24.4 CM )1. ZóCALO INTEL® LGA 1700: LISTO PARA PROCESADORES INTEL® CORE ? DE 12.ª GENERACIóN, COMPATIBLE CON PCIE 5.0, DDR5 Y LISTO PARA WINDOWS 11 LISTO PARA USAR 2. PLACA BASE AI: OVERCLOCKING AI, ENFRIAMIENTO AI, REDES AI (GAMEFIRST VI) Y CANCELACIóN DE RUIDO AI 3. SOLUCIóN DE POTENCIA ROBUSTA: 18 + 1 ETAPAS DE POTENCIA DE 90 A CON CONECTOR DE ALIMENTACIóN PROCOOLII, ESTRANGULADORES DE ALEACIóN DE ALTA CALIDAD Y CONDENSADORES DURADEROS PARA ADMITIR PROCESADORES DE VARIOS NúCLEOS 4. DISEñO TéRMICO OPTIMIZADO: DISIPADOR DE CALOR VRM, DISIPADOR DE CALOR SIN VENTILADOR PCH, DISIPADOR DE CALOR M.2 DE DOBLE CARA, CABEZALES DE VENTILADOR HíBRIDOS Y UTILIDAD FAN XPERT 4 5. REDES DE JUEGOS DE ALTO RENDIMIENTO: WIFI 6E INTEGRADO E INTEL® 2.5 GB ETHERNET CON ASUS LANGUARD 6. MEJOR CONECTIVIDAD PARA JUEGOS: ADMITE SALIDA HDMI® 2.0 Y DISPLAYPORT ? 1.4, Y ADMITE HASTA 5 RANURAS M.2, 1X PCIE 5.0 M.2, INCLUIDO CON LA TARJETA ROG HYPER M.2 Y USB 3.2 GEN 2X2 TYPE-C AND TYPE -A Y CONECTORES USB 3.2 GEN 2X2 TYPE-C® DEL PANEL FRONTAL 7. PC COMPATIBLE CON BRICOLAJE: SAFEDIMM, PCIE 5.0 SAFESLOT, Q-LED, M.2 Q-LATCH, PROTECTOR DE PALANCA DE ZóCALO DE CPU, PROTECTOR DE E / S PREMONTADO, BIOS FLASHBACK ?, BOTóN CLR CMOS, Q-CODE Y FLEXKEY ( RESET, AURA ENCENDIDO / APAGADO, TECLA DIRECTA) 8. AUDIO PARA JUEGOS LíDER EN LA INDUSTRIA: AUDIO DE ALTA FIDELIDAD CON ALC4080 CON AMPLIFICADOR SAVITECH SV3H712, JUNTO CON DTS® SOUND UNBOUND Y SONIC STUDIO III 9. NUEVA ESTéTICA ROG STRIX: NUEVO DISEñO DE IDENTIFICACIóN, PANTALLA ACRíLICA ILUMINADA, ILUMINACIóN AURA SYNC RGB EXCLUSIVA DE ASUS, QUE INCLUYE ENCABEZADOS RGB Y ENCABEZADOS DIRECCIONABLES GEN 2
