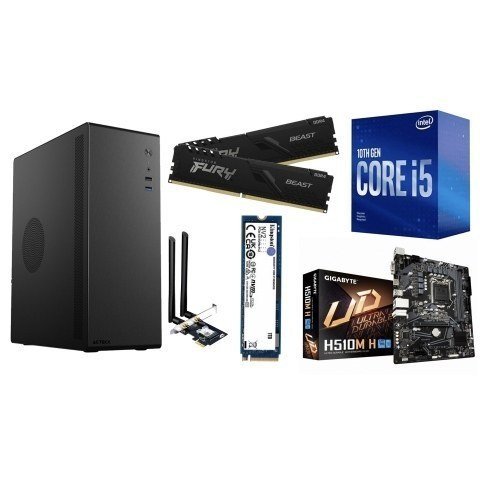

COMPUTADORA DE ESCRITORIO CORE I5, H510M, 16GB RAM, 1TB SSD

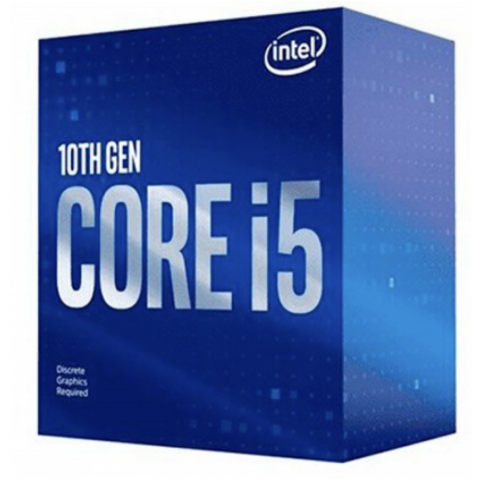

Especificaciones CPU

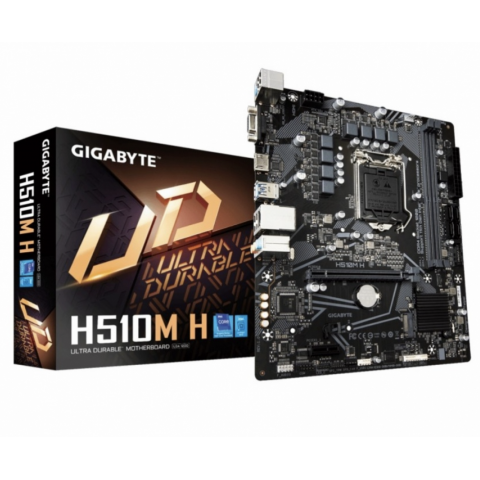

Especificaciones Tarjeta Madre

• Procesador
  LGA1200 package:

  1. 11th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors
  2. 10th Generation Intel^® Core™ i9 processors / Intel^® Core™ i7 processors / Intel^® Core™ i5 processors / Intel^® Core™ i3 processors/ Intel^® Pentium^® processors / Intel^® Celeron^® processors
  3. L3 cache varies with CPU

  (Please refer to "CPU Support List" for more information.)
• Chipset
  1. Intel^® H510 Express Chipset
• Memoria
  1. 11th Generation Intel^® Core™ i9/i7/i5 processors:
     Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
  2. 10th Generation Intel^® Core™ i9/i7 processors:
     Support for DDR4 2933/2666/2400/2133 MHz memory modules
  3. 10th Generation Intel^® Core™ i5/i3/Pentium^®/Celeron^® processors:
     Support for DDR4 2666/2400/2133 MHz memory modules
  4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
  5. Dual channel memory architecture
  6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
  7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  8. Support for Extreme Memory Profile (XMP) memory modules

  (Please refer "Memory Support List" for more information.)
• Gráficos Integrados
  Integrated Graphics Processor-Intel^® HD Graphics support:

  1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
     * Support for HDMI 1.4 version and HDCP 2.3.

  (Graphics specifications may vary depending on CPU support.)
• Audio
  1. Realtek^® Audio CODEC
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
     * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
• LAN
  1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
• Puertos de Expansión
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
     * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
     (The PCIEX16 slot conforms to PCI Express 4.0 standard.)*
     * Supported by 11th Generation processors only.
  2. 1 x PCI Express x1 slot (PCIEX1_1)
     (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
• Interfaz de Almacenamiento
  Chipset:

  1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
  2. 4 x SATA 6Gb/s connectors
     * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
• USB
  Chipset:

  1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• Conectores Internos de E/S
  1. 1 x 24-pin ATX main power connector
  2. 1 x 8-pin ATX 12V power connector
  3. 1 x CPU fan header
  4. 1 x system fan header
  5. 1 x RGB LED strip header
  6. 1 x M.2 Socket 3 connector
  7. 4 x SATA 6Gb/s connectors
  8. 1 x front panel header
  9. 1 x front panel audio header
  10. 1 x USB 3.2 Gen 1 header
  11. 1 x USB 2.0/1.1 header
  12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
  13. 1 x serial port header
  14. 1 x Clear CMOS jumper

  ＊All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
• Conectores del Panel Trasero
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x D-Sub port
  3. 1 x HDMI port
  4. 2 x USB 3.2 Gen 1 ports
  5. 4 x USB 2.0/1.1 ports
  6. 1 x RJ-45 port
  7. 3 x audio jacks
• Controlador de E/S
  1. iTE^® I/O Controller Chip
• Monitorización H/W
  1. Voltage detection
  2. Temperature detection
  3. Fan speed detection
  4. Fan fail warning
  5. Fan speed control
     * Whether the fan speed control function is supported will depend on the cooler you install.
• BIOS
  1. 1 x 256 Mbit flash
  2. Use of licensed AMI UEFI BIOS
  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Características Únicas
  1. Support for APP Center
     * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
     @BIOS
     Ambient LED
     EasyTune
     Fast Boot
     ON/OFF Charge
     Smart Backup
     System Information Viewer
  2. Support for Q-Flash
  3. Support for Xpress Install
• Software Incluido
  1. Norton^® Internet Security (OEM version)
  2. LAN bandwidth management software
• Sistema Operativo
  1. Support for Windows 10 64-bit
• Diseño
  1. Micro ATX Form Factor; 24.4cm x 21.0cm
